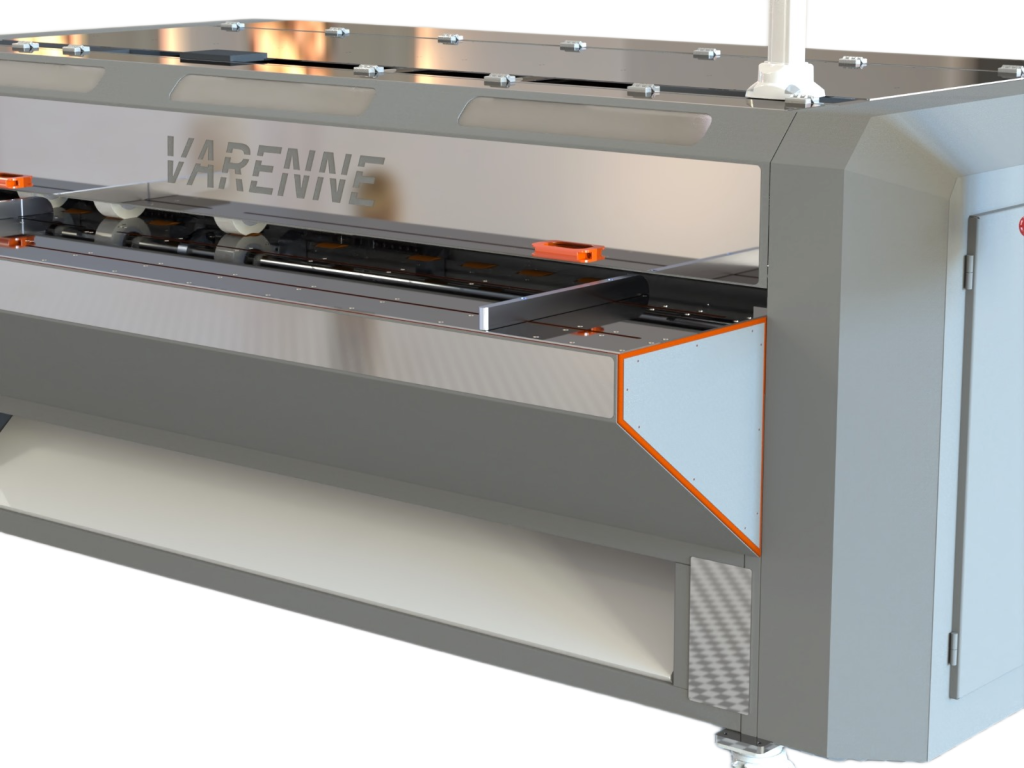

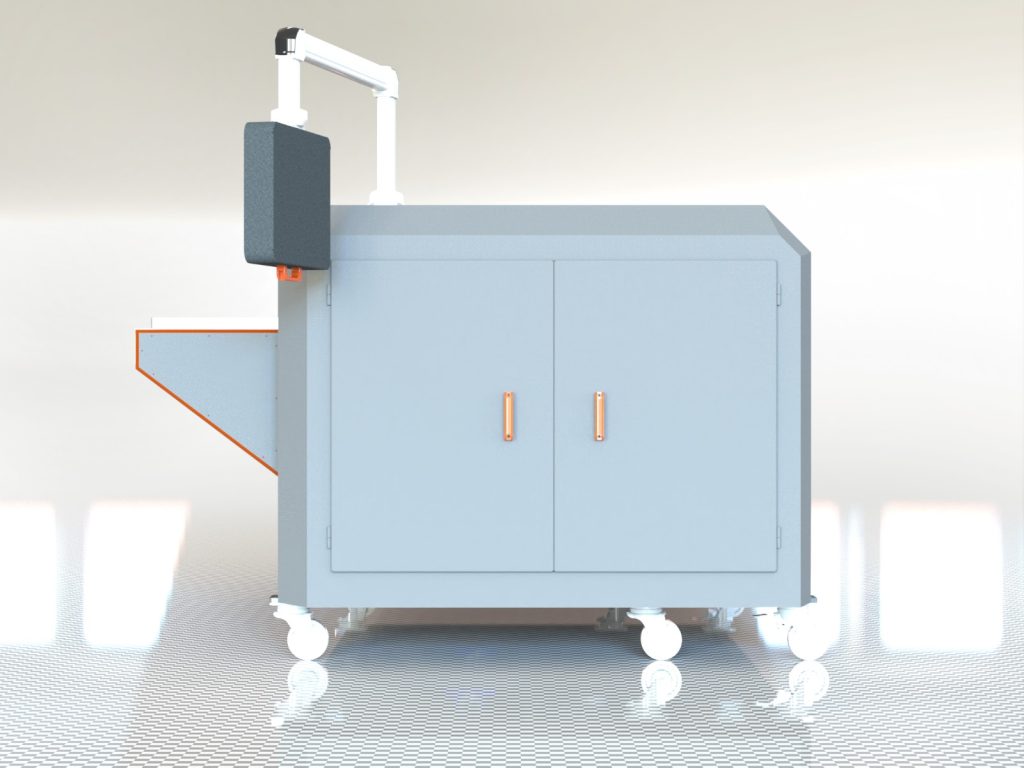

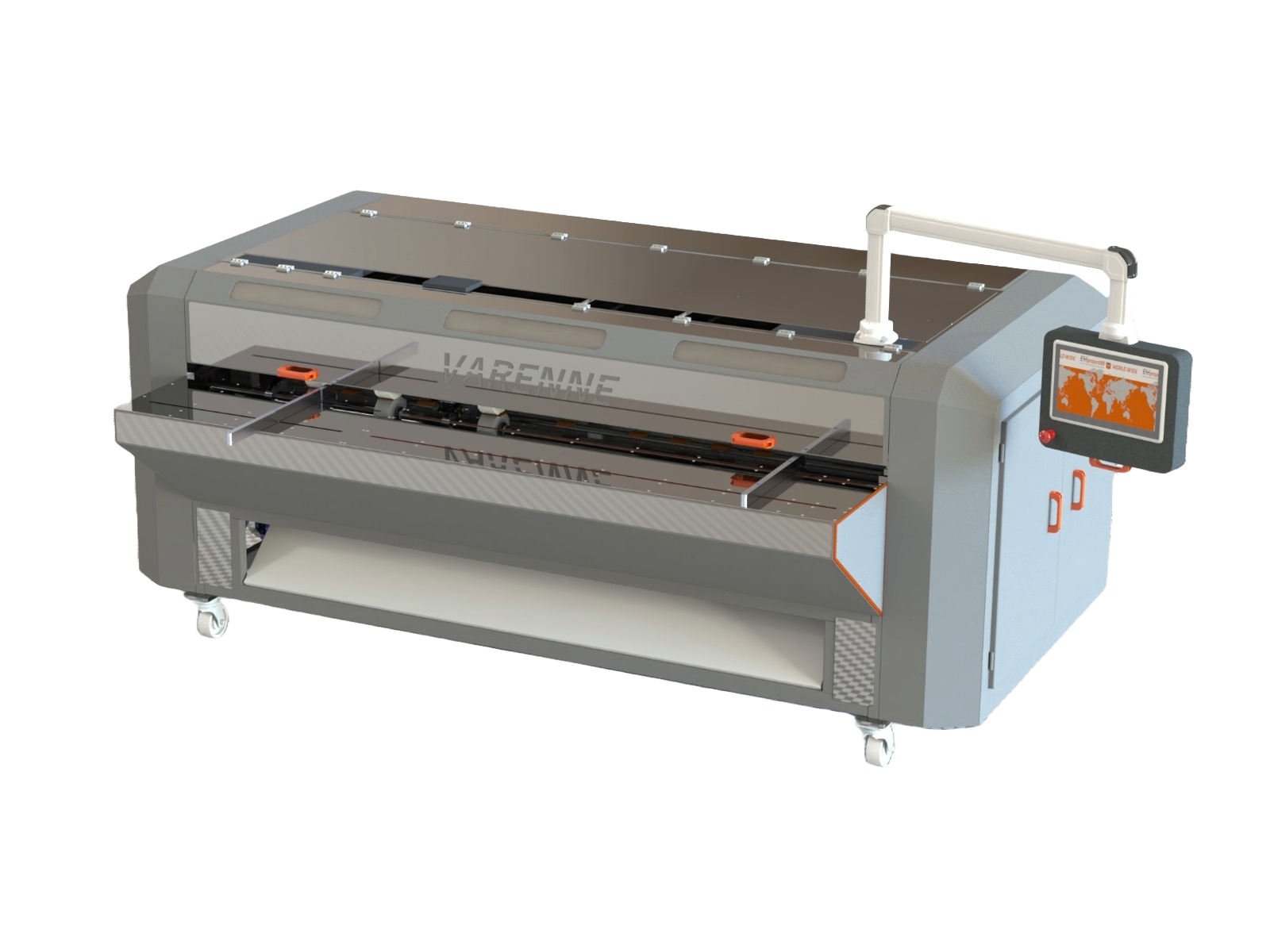

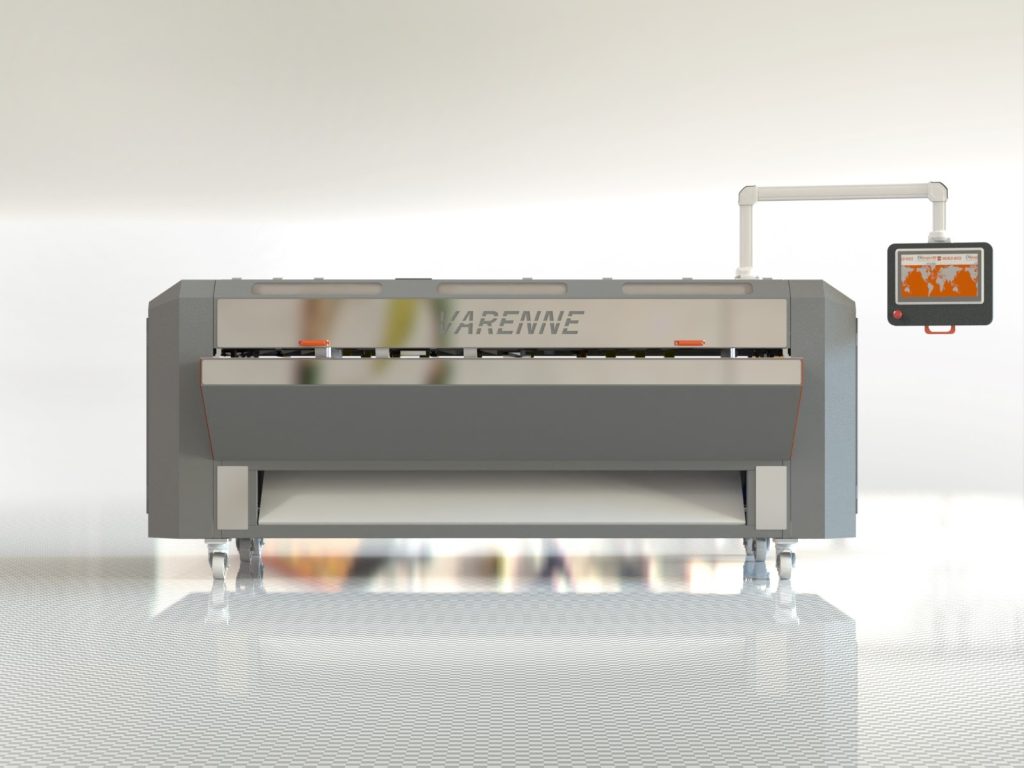

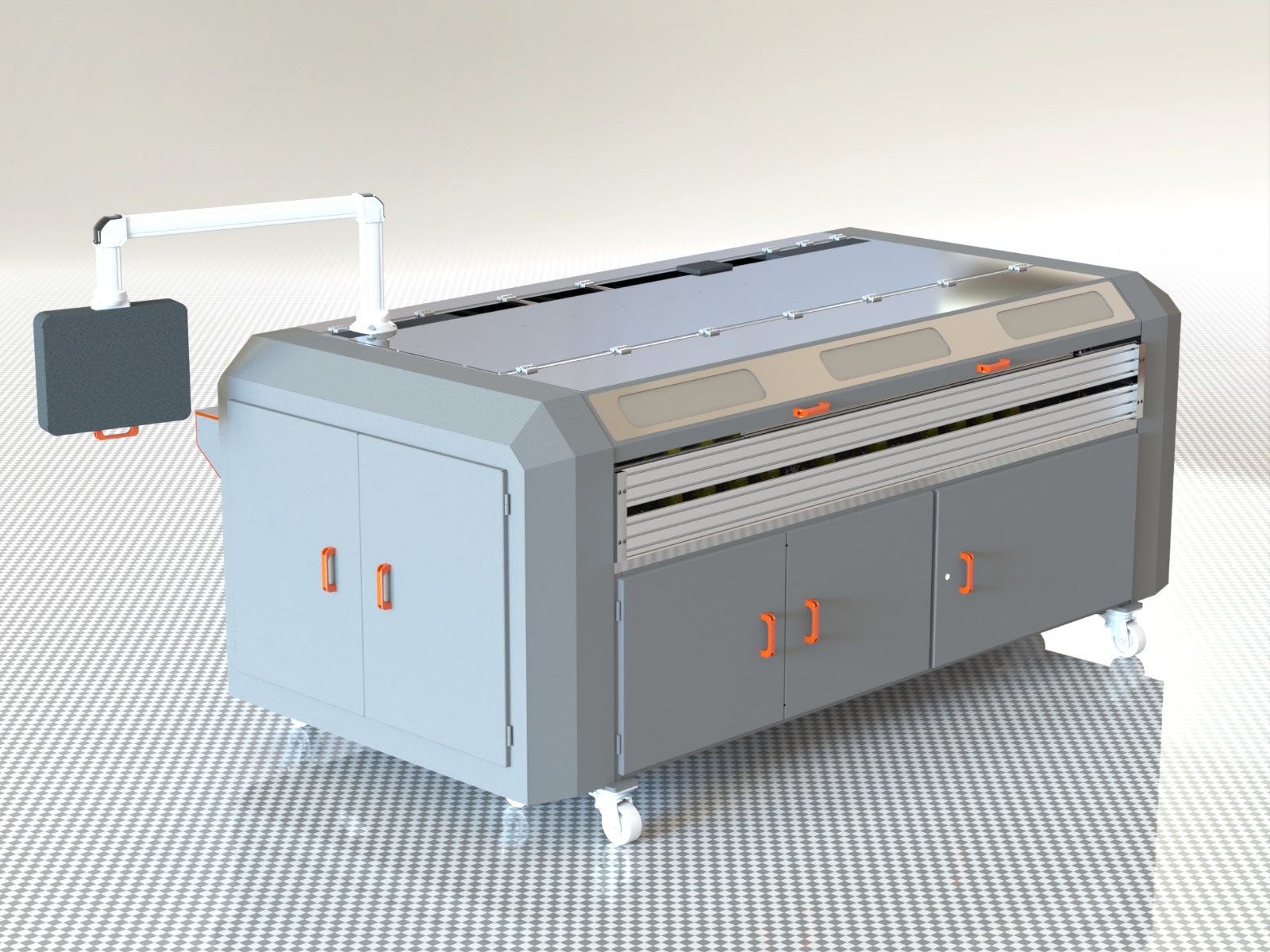

BOXmaker Varenne
Discover how our innovative solution can transform your box-making process, schedule your FREE demo, live or online options are available.
From February 23rd to 27th, we are hosting an exclusive Open Week to launch the BM Varenne. This machine was engineered to bridge the gap between high-end functionality and affordability, offering a competitive price point that challenges the current market standard.
Why the BM Varenne?
- Increased Functionality: Advanced features designed for higher output and versatility.
- Built to Last: Every machine comes with an industry-leading 5-year warranty.
- Unbeatable ROI: Professional-grade performance at a highly competitive investment level.
Exclusive "Open Week & March" Incentives
To celebrate the launch, orders placed during our Open Week or throughout the month of March will receive:
- Complementary Tooling: A suite of additional tools to further extend your machine’s flexibility.
- Worry-Free Logistics: All orders for the BM Varenne placed by the end of March include complimentary shipping directly to designated locations.
Technical characteristics:
| Capacity: | up to 1200 boxes per hour (FEFCO 200) |
| Installed Power: | 6.1Kw |
| Machine Dimmensions: | 3400mm x 2300mm x 1700mm |
| Cardboard Type: | three and five layer, up to 10mm and 1000GSM |
| Maximum Board Size: | 2400mm x 7000mm |
| Minimum Board Size: | 200mm x 630mm |
| Distance Between Slotting Knives: | 50mm – 2200mm |
| Length Of Slotting Knives: | 2x 500mm (in 100mm segments) |
| Width Of Slot: | 8mm |
| Machine Weight: | approximately 2600kg |
BOXmaker Varenne Features and Modules:
Gluing module
Designed for single-pass efficiency, the servo- powered cold gluing system completes the production cycle at speeds up to 1m/s. The unit features an external tank and an internal injector, offering high flexibility with fine-tuned application. The water-based glue can be applied in either lines or dots, ensuring precision and adaptability for various box designs.
Flexo Printing module
The printing unit delivers single-color markings (up to 150mm x 470mm), ideal for transport box labeling. It allows for repetitive imprinting on all four sides or precise placement anywhere on the board, including creased surfaces. For larger requirements, a 300mm x 470mm unit is available. The system supports a 4.35mm cliché thickness, with the option to install two units for dual-side or expanded printing.
Automatic in-feed vacuum table
Automation is the core strength of this model. With automated adjustment of slotting knives, guide rails, and creasing wheels and circular knives — setup time between box styles is reduced to just 30 seconds. The machine is capable of producing over 110 FEFCO codes in a single pass.
110+ FEFCO CODES using FREE MODE:
SERIES 0100:
100, 110, 111, 112, 113, 119, 121, 122, 123, 129, 130
SERIES 0200:
200, 201, 202, 203, 204, 205, 206, 208, 209, 214, 225, 228, 230, 231
SERIES 0300:
300, 301, 302, 306, 310, 312, 313, 319, 320, 331
SERIES 0400:
400, 401, 402, 403, 404, 405, 407, 409, 410, 411, 440, 441, 452, 453, 454, 455, 458, 480
SERIES 0500:
501, 502, 503, 504, 505, 507, 509, 510, 511, 512
SERIES 0600:
610, 615, 616, 620, 621
SERIES 0900:
900, 901, 902, 903, 904, 905, 906, 907, 908, 909, 910, 911, 912, 913, 914, 920, 921, 929,
930, 931, 932, 933, 934, 935, 936, 937, 938, 939, 940, 941, 942, 943, 944, 945, 946, 947,
948, 949, 950, 951, 952*, 953*, 967, 970, 971, 972, 973, 974, 975, 976
How to Join Us:
Visit in Person: See the live production flow (Feb 23-27).
Private Online Demo: Book a 1-to-1 session with our engineers.
Web Showcases: Register for our video projections on Tuesday (Feb 24 at 9:30 CET) and Thursday (Feb 26 at 14:00 CET).
